[ACC 스터디 3주차] - EC2 instance storage + ELB &ASG

EBS is a volume is a network drive you can attach to your instances while they can run

한번에 한 인스턴스에만 마운트 된다

종료되어도 데이터를 지속하게 함

network usb stick 으로 비유함



EBS Volume - network drive

snapshot을 통해 볼륨을 across함



the root ebs volume은 삭제 안됨

preserve root volume when instance is terminated





EBS Snapshot

backup of your ebs at a point in time

필수는 아님

copy snapshots across az or region



EBS Snapshot features



AMI overview

AMI  = amazon machine image

cutomizaion of an ec2 instance

소프트웨어 configuration os 를 추가할 수 있다

ami are built for a specific region

you can lauch ec2 instace from

public ami

your own ami

an aws marketplace ami



AMI process

start an ec2 instance and customize it

stop the instache

build an ami - ebs snap shot도 생성

instacne form other ami



EC instanch store

ebs volume은 network drives with good but limited performance

if you need a high performance hardware disk use ec2 instance store하드웨어임

io 성능 향상을 위해

ec2 instance sotore lose their storage if stopeed

버퍼 캐시 임시 내용에 훌륭함

하드웨어가 실패하면 데이터 손실 위험이 발생

backup and replicaton이 필수



local ec2 instance store

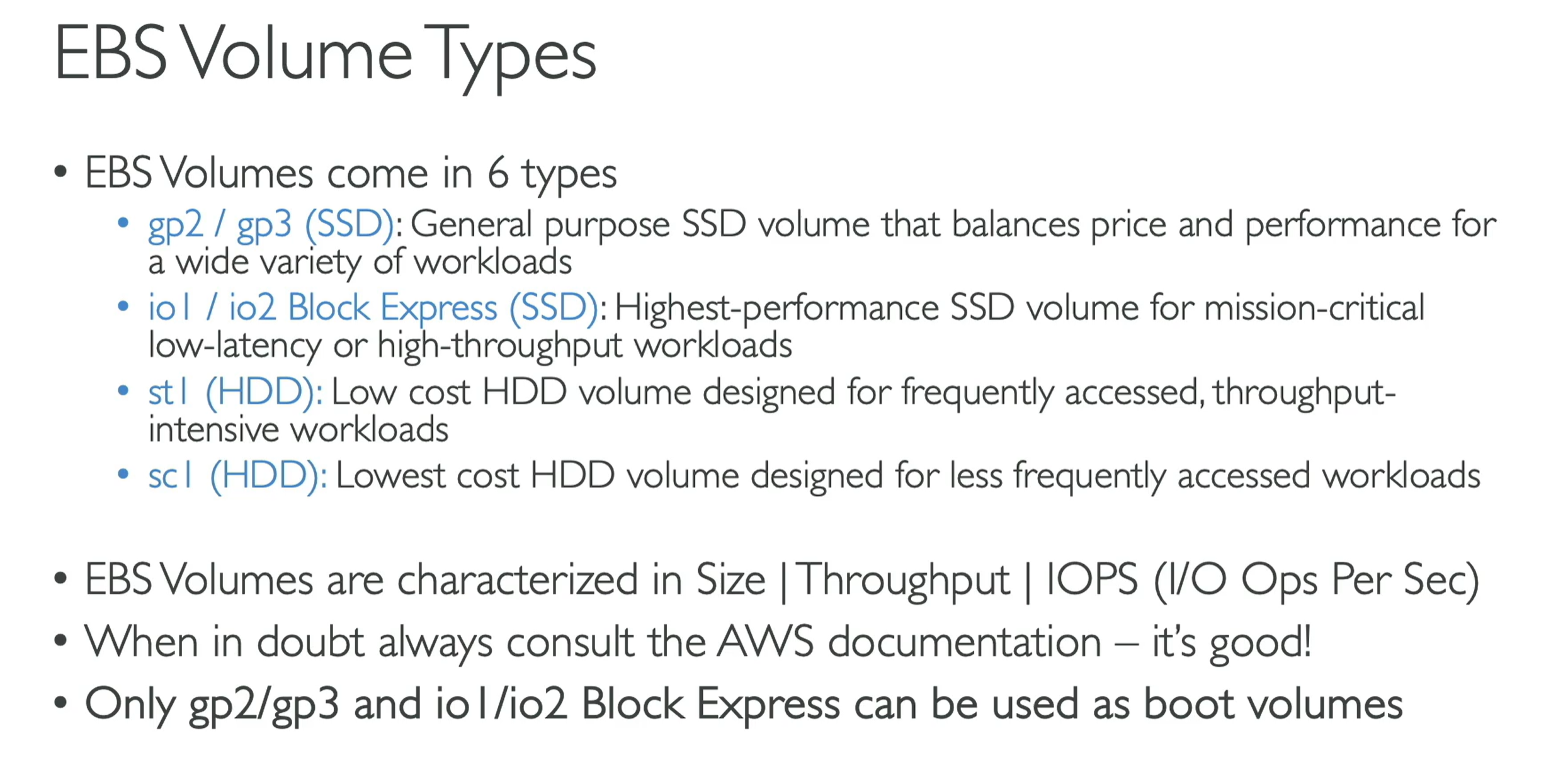

EBS volume types

6 types

gp2 gp3

io1 io2 block express

st 1 HDD

sc 1 HDD

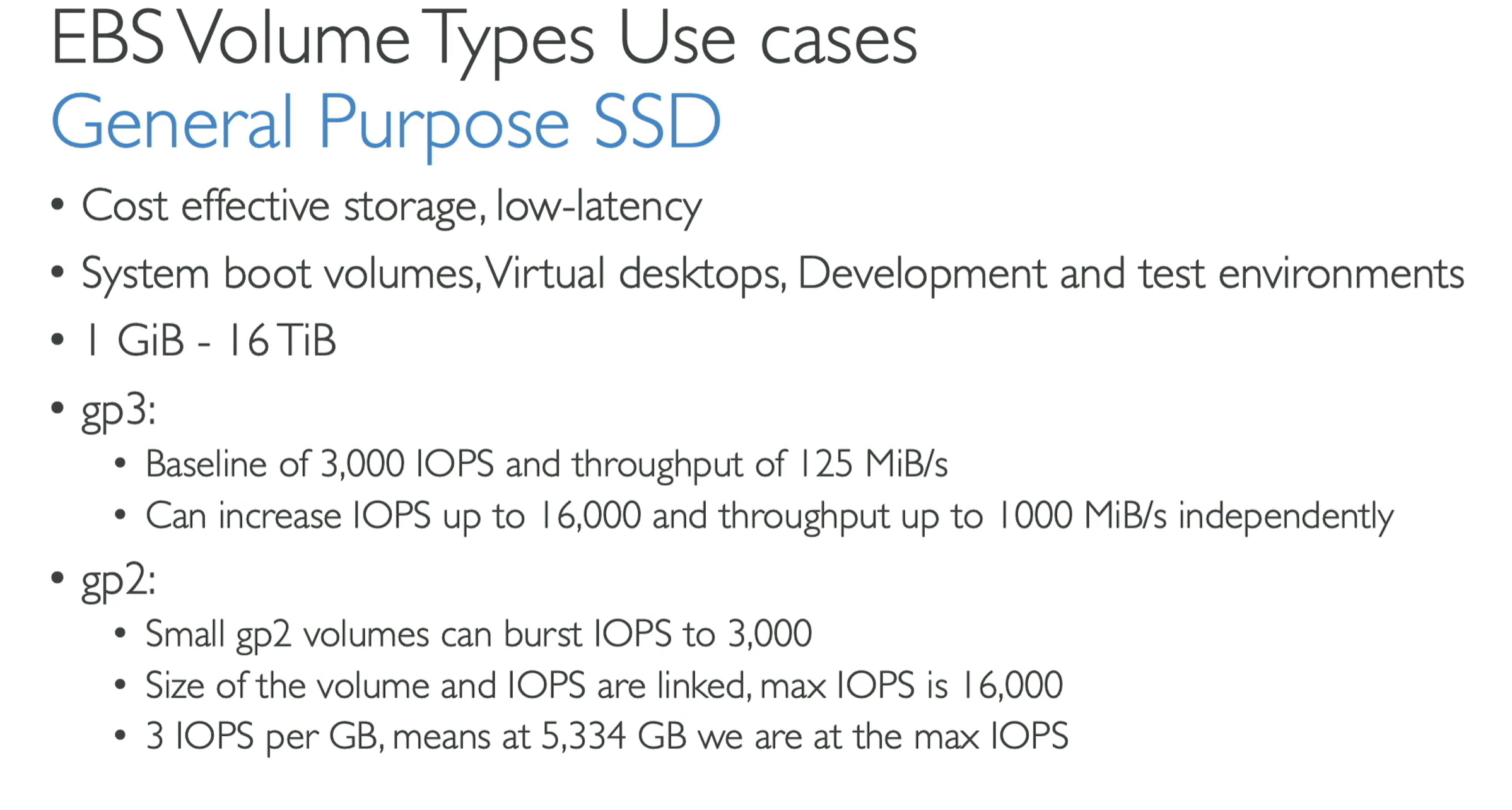

EBS Volume types use cases

general purpose ssd

- cost effective storage , low latency

- system boot volumes

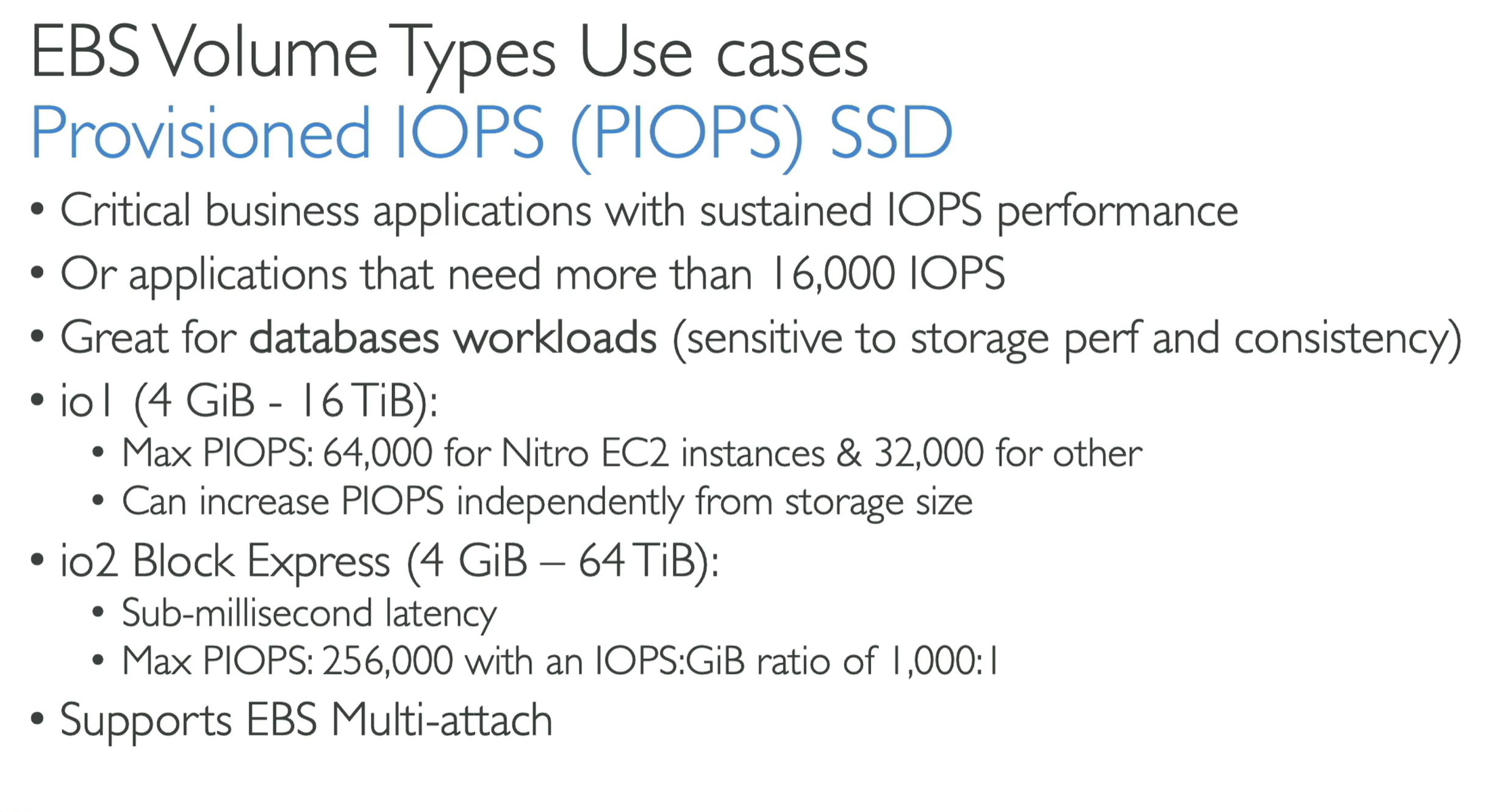

provisioned IOPS SSD

critical business applications with sustained iops performance

16000 iops 보다 더 필요한 앱





EBS multi attach - io io2 family

1개 ebs volume 을 multiple ec2 instances에 같은 az에서

각 인스턴스는 full read and write 권한 to high performance volume

use case

higher application availability in clustered linux app

application must manage concurrent write operations

up to 16 ec2 instace at a time

must use a file system thats cluster aware



암호화는 대기시간에 영향이 거의 없어서

leverages keys from kms

copying an unencrypted snapshot allows encryption



EFS - elastic file system

efs works with ec2 instances in multi az

highly available scalable expensive pay per use

content management web serving data sharing wordpress

user nfsv4.1 protocol

uses security group to control access to EFS

compatible with linux based ami

encryption at rest using kms

posix file system that has a standard file api

file system scalses automatically pay per use no capacity planning



EBS : one instance , are locked at the az level , gp2 IO increases if the disk size increases , gp3 io 1 can increase io independently

EFS : mouting 100 acorss az

efs share website files

only for linux instances

higher price point than ebs

can leverage efs-ia for cost savings









High availability and scalability



확장성 : 시스템이 더 큰 load를 handle하는 것

veritcal  : 크기를 증가 t2.micro - > t2.large non distributed system such as database

rds elastic cache are services that can scale verically

limit 이 있음

horizontal = elasticity :instance 숫자를 증가시키는 것 , horizontal scaling implies distributed systems

this is very common for web applicaton  -> High availability



High availability - run your app in at least 2 data centers

the goal of high availability is to survive  a data center loss

passive

acitve



vertical scaling : increase instance size

horizontal scaling : increase numbers of size

고가용성 sam app across multi az





load balancing : severs that forward traffic to multiple servers downstream

why use? spread load across multiple downstream instances

expose a single point of access to your app

regular health checks to your instances

provide ssl termination of your webisites

enforce stickiness with cookies

public 이랑 private을 분리!



managed  load balancer

upgrades maintenance high availability

a few configuration knobs



health checks

elb -> ec2 instance

done on a port and a route

the response is not 200 , unhealthy



4 managed load balancers

classic load balancer

application load balancer

network load balancer

gateway load balancer



internal or external elb



users - https http from anywhere -- load balancer -- http restricted to load balancer -- ec2



applicaton load balancer is 7계층

load balancing to multiple http applicatons across machines (target groups)

on the same machine (containers)

http/2 and web socket

redirects (http https)





nlb

forward tcp and udp traffic to your instances

less latency ~ 100 ms



one static ip per az assign elastic ip for whitelisting specific ip



network load balancer - target groups

ec2 instances ip 주소 - private ip

application load balancer

tcp http https protocols



sticy sessions

it is possible to implement stickiness so that the same cient is always rediredcted to the same instance behind a load balancer

classic load balancer , application load balancer and network load balancer

application - based cookies

custom cookie -generated by target, specified individually for each target group

dont use awsalb awsalbapp awsalbtg



application cookie - generated by the load balancer , cookie name is awsalbapp





cross zone load balancing

with cross zone load balancing each load balancer instance distributes evenly across all registered instances in all a

applicaton load balancer - no charge for inter az data



network load balancer and gateway load balancer





ssl tls - basic

ssl : secure socket layer  certificate allows traffic btw your clients and your load balancer tobe encrypte in transit

tls : transprot layer security which is a newer version



ssl certificates

users -- https 암호화 -- load balancer  ---http private vpc



ssl

snl solve the problem of loading multiple ssl certificates onto one web server

note - works for alb and nlb , cloudfront

does not work for clb



auto scaling group

asg : scale out to match an increased load

scale in to match a decreased load

ensure we have a minimum and maximum number of ec2 instances running

asg are free

launch template - launch configurations are deprecated

ami + instance type

ebs volumes

ssh key pair
